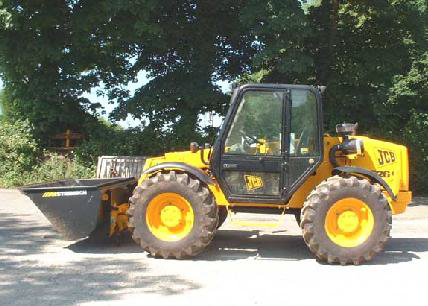

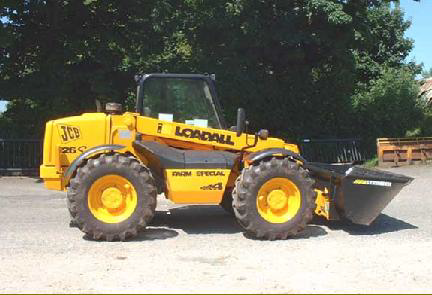

JCB 526S LOADALL

SPECIFICATIONS
ENGINE:
Perkins 4 cylinder
Turbocharged @ 106hp.

TRANSMISSION:
Torque converter with
revising shuttle on a
4-speed synchromesh
gearbox. Permanent 4
wheel drive, on large
17.5 R 24 tyres.

STEERING:
4 wheel steer with 3
steering mode options,
2 wheel steer for road
use, 4 wheel steer for
loading and crab steer
for getting out of difficult corners.

CARRIAGE:
Cone and socket to fit Matbro attachments.

STATIC DIMENSIONS:
Height over cab     2.30m
Overall width         2.23m
Overall length to front
carriage                 4.35m
Wheelbase             2.34m
Ground clearance   0.45m
Turning radius       3.89m
Road speed              35kh

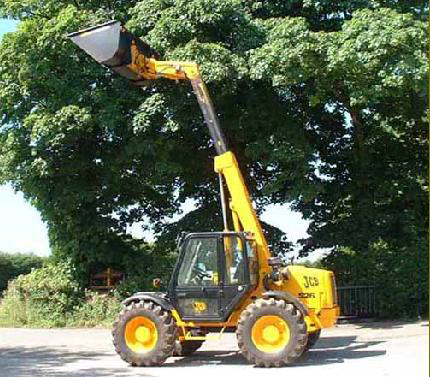

LIFT PERFORMANCE:
Lift height 5.61m (18' 5")
Lift capacity to full
height              2.6 tonne
Maximum forward reach
                            2.96m
Lift at fill reach 1 tonne
