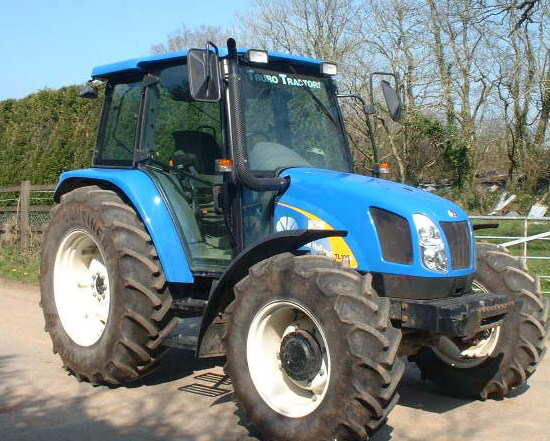

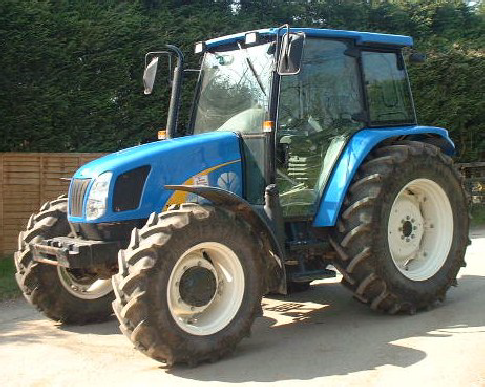

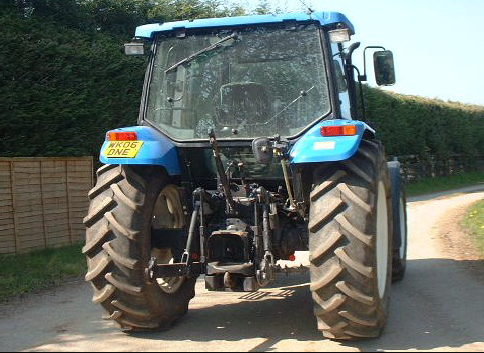

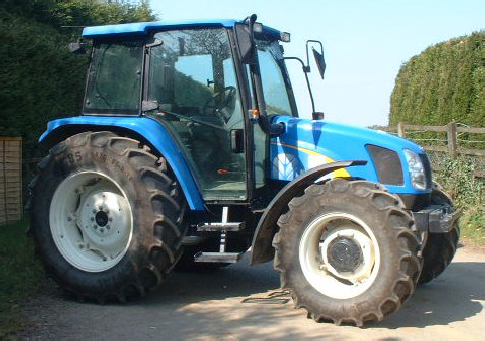

New Holland TL 100
   SPECIFICATIONS

ENGINE:
New Holland  4 cylinder turbocharged @ 105hp
Producing very high torque.

TRANSMISSION:
Dual Power with 24 forward and 12 reverse gears, using conventional
dry plate clutch for a
very smooth  engagement.

HYDRAULICS:
Open centre with 59 lpm@ 190 Bar. 2 spool valves.
Max lift  on rear linkage With one assist ram 4800kg

PTO:
3 speeds 540, 750 & 1000
Giving a massive 95hp on the PTO.

             STATIC
      DIMENSIONS:
Height to top of cab 2.40m
Length                     4.63m
Wheelbase               2.31m
Ground clearance     0.27m
Turning radius            4.1m
Weight                   3.600kg
Tyres front            13.6R24
Tyres rear             16.9R34
