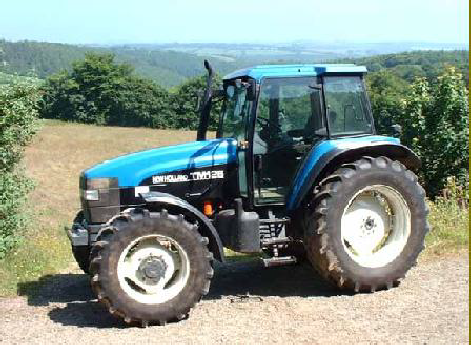

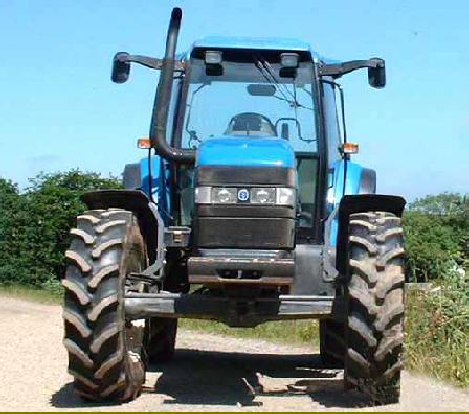

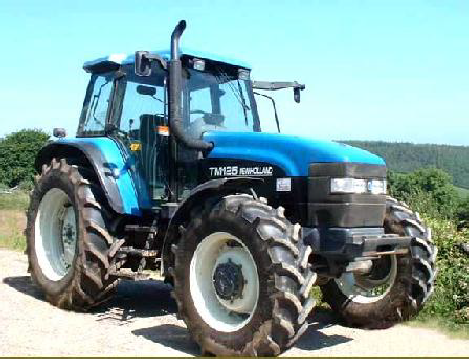

New Holland TM 125
SPECIFICATION

ENGINE:
New Holland  6 cylinder turbocharged @ 135hp
Producing very high torque.

TRANSMISSION:
Shuttle Command with
20 forward and 16 reverse
gears, using conventional
dry plate clutch for a
very smooth  engagement.

HYDRAULICS:
Open centre with 53.1 lpm
@ 190 Bar. 2 spool valves.
Max lift  on rear linkage
With one assist ram 5570kg

PTO
3 speeds 540, 750 & 1000
Giving a massive 130hp on
the PTO.

STATIC DIMENSIONS
Height to top of cab  2.78m
Length- - - - - - - - - - 4.61m
Wheelbase- - - - - - - 2.72m
Ground clearance- - - 0.27m
Turning radius- - - - - 9.22m
Weight- - - - - - - - -5250kg
Tyres front- - - - - 14.9R28
Tyres rear- - - - - -18.4R38
